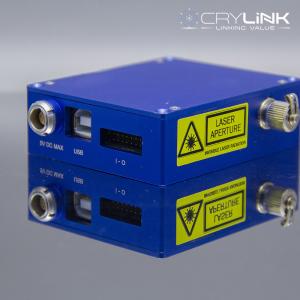

976nm Narrow Linewidth Multimode Solid State Laser NLO Series

Name: 976nm Narrow Linewidth Multimode Solid State Laser NLO Series
Brand: CRYLINK
Price: 1 USD

China 976nm Narrow Linewidth Multimode Solid State Laser NLO Series wholesale

Brand Name : CRYLINK

Model Number : 976nm Multimode Narrow Linewidth Laser Module of NLO Series

Certification : ISO9001

MOQ : 1

Price : custom

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

976nm Multimode Narrow Linewidth Laser Module of NLO Series

The narrow linewidth laser module is a special product of our company. It is equipped with standard input and output interfaces, which can be easily embedded into the user’s whole system to achieve very stable narrow linewidth laser output. The product has built-in optimized optical feedback power stabilization module and Tec refrigeration module, which makes the product have good spectral characteristics and power stability characteristics. Customized and secondary development services can be provided according to customer requirements.(Download PDF)

Model and Parameter

Model		CL976-MIW-600mW-NLO007	CL976-MIF(FP)-600mW-NLO008
Optical Parameter	Central Wavelength (nm)	976	976
	Wavelength Tolerance (nm)	±0.5	±0.5
	Output Power (mW)	600	600
	Line Width (nm)	<0.3	<0.3
	Wavelength Stability	± 0.007nm @ 8H Typ	± 0.007nm @ 8H Typ
	Power Stability	±1.0%@8H	±1.0%@8H
	Side Mode Rejection Ratio (dB)	30	30
System Parameter	Power Adjustment Range	0～100%	0～100%
	Preheat Time (Min)	15	15
	Fiber Interface	Space Light	FC/PC
	Control Interface	PH2.0-10P,USB	PH2.0-10P,USB
	Adaptive Optical Fiber	105µm,0.22NA	105µm,0.22NA
	Power Input	4.9V-5.1V @2A	4.9V-5.1V @2A
	System Power Consumption (W)	<5	<5
	Storage Temperature (℃)	0～55	0～55
	Storage Humidity (RH)	0~80%	0~80%
	Operating Temperature (℃)	10~35	10~35
	System Weight (g)	150	150
	System Size (mm)	76.2ⅹ63.5ⅹ22	76.2ⅹ63.5ⅹ22

Feature

Wavelength stability ± 0.007nm / ℃
Power stability <± 1.0%
Low power consumption, typical advantages <5W
Small size, 76.2 × 63.5 × 22mm
Optional USB control interface, hardware lock

Application

Confocal microscope
Raman spectrometer
Fluorescence Spectrometer
Up-conversion material
Laser particle size analyzer
